No Longer Sold - The Zodiac ZS500 sets a new benchmark for pool heat pumps. By utilising inverter technology combined with a vertical fan unit, this heat pump provides you with the ultimate performance while also maintaining premium energy efficiency. It operates almost silently and can fit just about anywhere in or around your pool area – great for conserving outdoor space.
These come in two sizes: 15kW & 20kW
- Price cannot be shown as per Astralpool Authorised Dealer Agreement.
- Anyone advertising a price online is not an Authorised Dealer and this can affect warranties.
- Kept Physically in Stock at 10 Industry Blvd, Carrum Downs, Vic
Three heating modes
- ECO mode allows the ZS500 to operate at as little as 50% power to reduce costs.
- Smart mode operates between 50% and 100% power capacity.
- Boost mode allows you to run your ZS500 at 100% power, ideal for heating your pool quickly.

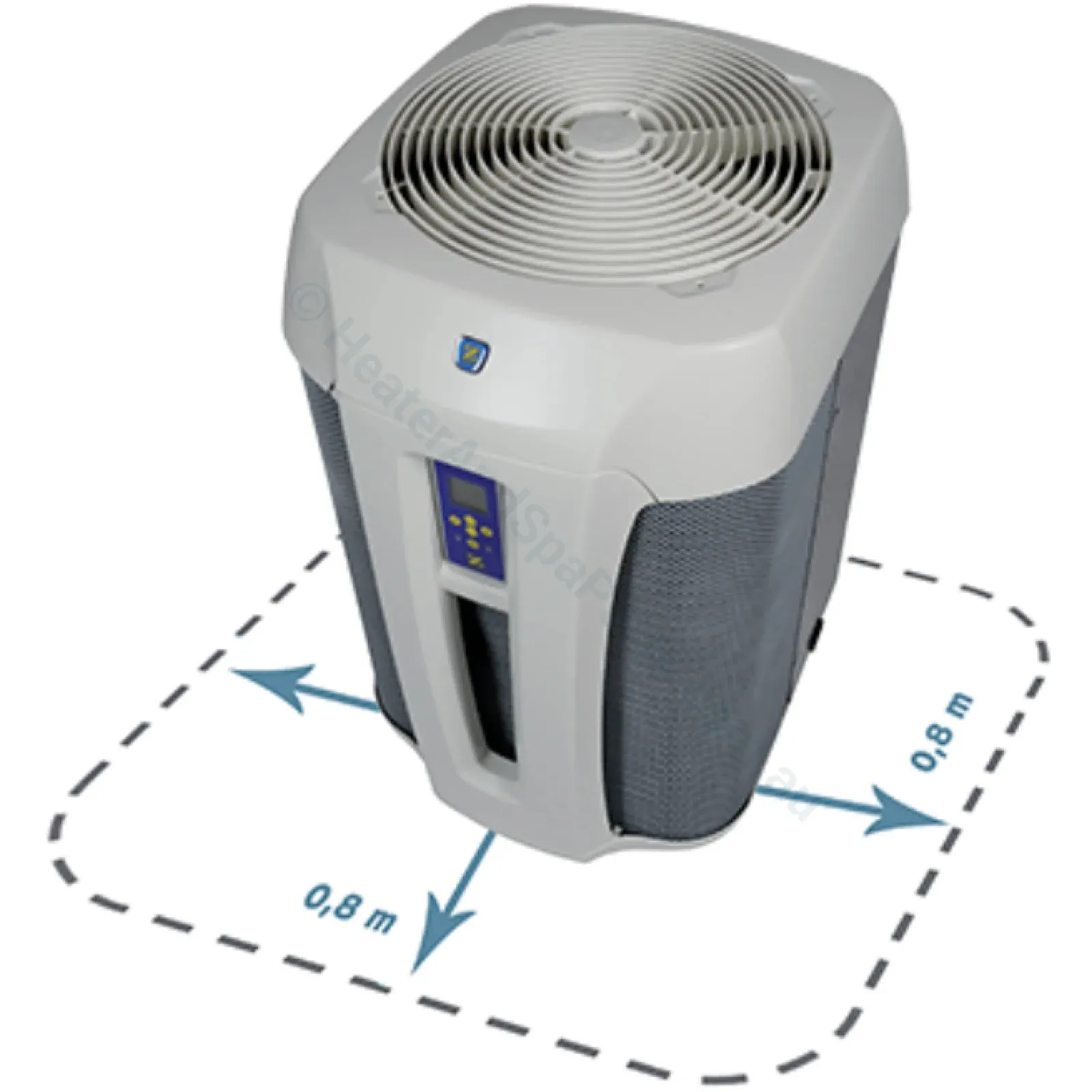

Vertical fan unit for discreet installation
Unlike conventional heat pumps that require a 5-metre radius of clear space to install, the ZS500 has a vertical fan system, allowing it to be concealed behind a wall or trees without compromising its performance.
User-friendly controls interface
The user-friendly and simple design of the ZS500’s controls interface allows you to set your desired water temperature and select your heating mode in a single step.

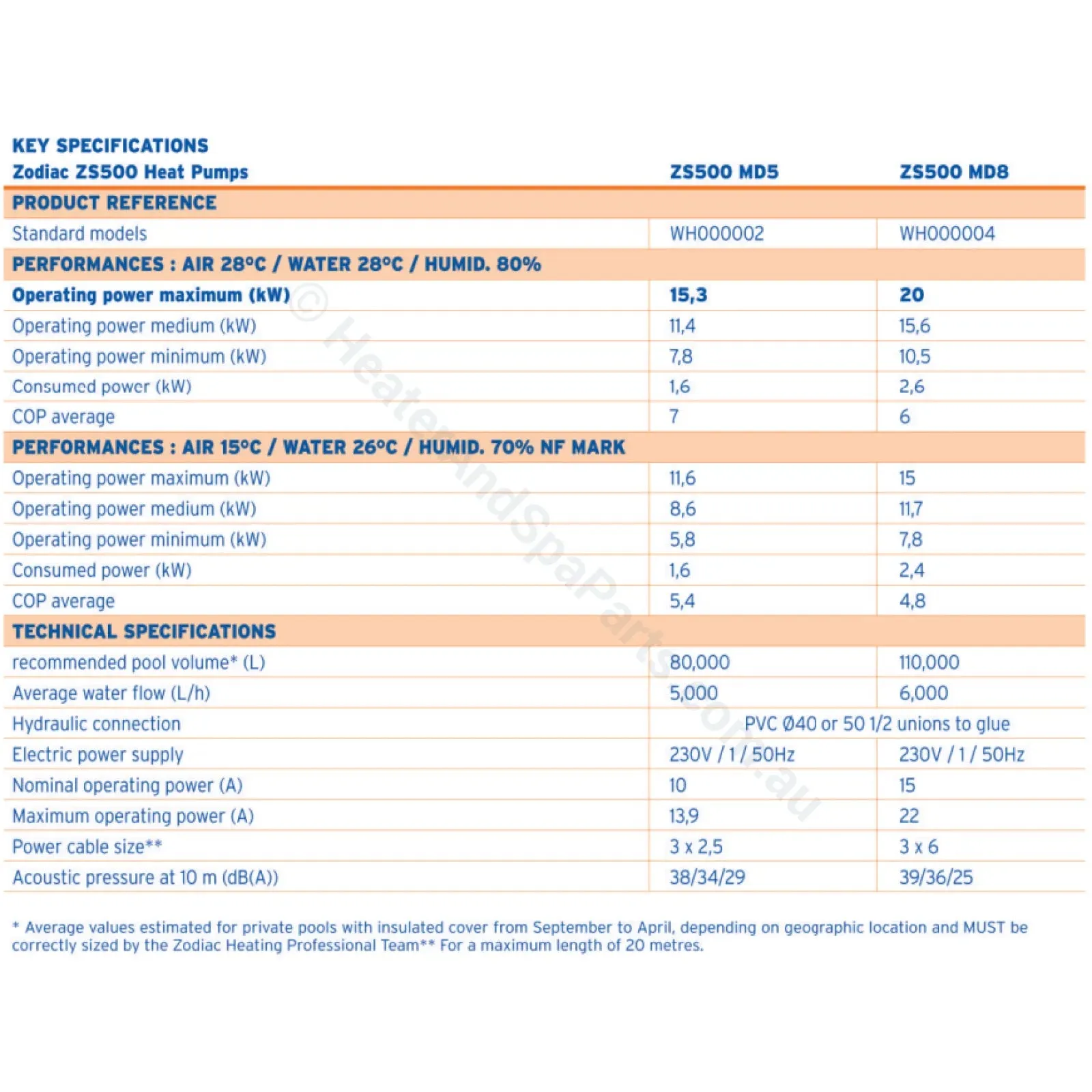

| Model No. | MD5 (15kw) | MD8 (20kw) |
|---|---|---|
| Pool Coverage | ||
| Recommended Pool Volume | 80,000L | 110,000L |
| Maximum Operating Power | 13.9A | 22A |
| Nominal Operating Power | 10A | 15A |
| Electric Power Supply | 230V / 1 / 50Hz | 230V / 1 / 50Hz |
| Hydraulic Connection | PVC ∅40 or 50 1/2 unions to glue | PVC ∅40 or 50 1/2 unions to glue |
| Average Water Flow | 5000L/h | 6000L/h |
| Equipment | ||
| COP (Coefficient of Performance) (at Air=28°C) | 5.4 | 6 |
| Consumed Power (at Air=28°C) | 1.6kW | 2.6kW |
| Operating Power Minimum (at Air=28°C) | 7.8kW | 10.5kW |
| Operating Power Medium (at Air=28°C) | 11.4kW | 15.6kW |
| Operating Power Maximum (at Air=28°C) | 11.6kW | 20kW |
| Power Cable Size | 3 × 2.5 (For a maximum length of 20m) | 3 × 6 (For a maximum length of 20m) |
| Acoustic Pressure at 10m | 38/34/29 (dB(A)) | 39/36/25 (dB(A)) |
Recommended Retail Prices:
Zodiac ZS500 MD5: $10,175.89
Zodiac ZS500 MD8: $12,395.14
